The ITVDesk Motion Event API allows an authenticated external system to manually set the ONVIF Motion state for a specific ITVDesk IPCam channel. This is useful when a business application, AI detector, sensor, access-control workflow, automation script, or external monitoring system needs to trigger a motion event inside a VMS/NVR through ITVDesk.

Availability: This API call is supported from ITVDesk 10.3 and newer versions.

When to use this API

• An external AI or object-detection system needs to raise a VMS/NVR motion event.
• A POS, kiosk, access-control, industrial, or automation application needs to mark activity inside the video system.
• A panic button, software button, or integration script should trigger recording, bookmarks, alerts, or event rules in the VMS/NVR.
• You want event control through ITVDesk without opening a new network service or custom port.

Requirements

1. Open ITVDesk and select the required IPCam / channel.
2. Enable Event detection for the channel.
3. Open Event Detection settings and enable Motion Event API.
4. Copy the Video Source Token shown next to the Motion Event API option.
5. Use the ONVIF username and password configured for that ITVDesk IPCam.

API endpoint

The Motion Event API uses the existing ITVDesk IPCam HTTP/HTTPS service. It does not require a separate API port.

POST http://ITVDESK_IP:ONVIF_PORT/api/events/motion
POST https://ITVDESK_IP:ONVIF_HTTPS_PORT/api/events/motion

Authentication and security

• Authentication uses HTTP Digest with the existing ITVDesk IPCam ONVIF username and password.
• Use HTTPS when the API is accessed outside a trusted LAN or protected network.
• The API is available only for the receiving ITVDesk IPCam and the channel token hosted by that IPCam.
• If Motion Event API is disabled for the channel, the request is rejected.

Request body

Send JSON with the channel Video Source Token and the required motion state.

{
  "token": "VideoSourceToken_1",
  "state": true
}

Copy button and quick test

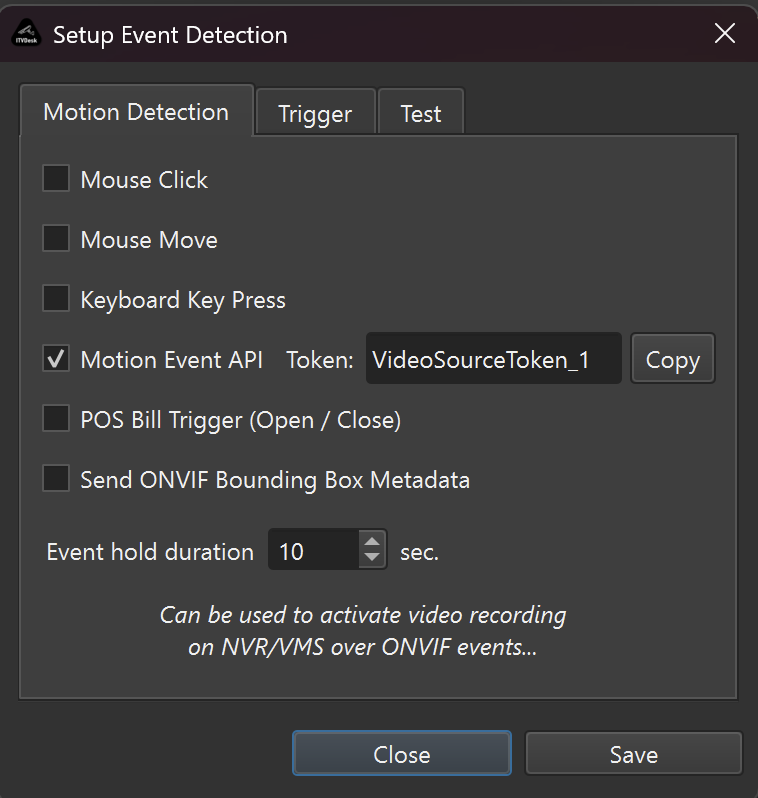

When Motion Event API is enabled, ITVDesk displays the channel token and a Copy button. The Copy button generates a ready-to-run curl command for the selected ITVDesk IPCam, ONVIF port, username, and token.

The generated command can trigger motion, wait a few seconds, and then clear the motion state. Replace the IP address, port, username, and password with your actual ITVDesk IPCam values when testing manually.

curl --digest --user 'admin:password' \
  --header 'Content-Type: application/json' \
  --data '{"state":true,"token":"VideoSourceToken_1"}' \
  'http://10.211.55.10:7000/api/events/motion'; \
sleep 5; \
curl --digest --user 'admin:password' \
  --header 'Content-Type: application/json' \
  --data '{"state":false,"token":"VideoSourceToken_1"}' \
  'http://10.211.55.10:7000/api/events/motion'

A successful test is visible in the ITVDesk log. The first request sets motion to active, and the second request clears it:

[2026-07-12 15:52:26] : [INFO] Onvif Event::Motion trigger source=motion_api state=1
[2026-07-12 15:52:26] : [INFO] [MOTION-API] camera=1 token=VideoSourceToken_1 state=1 changed=1
[2026-07-12 15:52:31] : [INFO] Onvif Event::Motion trigger source=motion_api state=0
[2026-07-12 15:52:31] : [INFO] [MOTION-API] camera=1 token=VideoSourceToken_1 state=0 changed=1

curl examples

Start motion:

curl --digest -u "admin:password" \
  -H "Content-Type: application/json" \
  -d '{"token":"VideoSourceToken_1","state":true}' \
  "http://192.168.1.20:7000/api/events/motion"

End motion:

curl --digest -u "admin:password" \
  -H "Content-Type: application/json" \
  -d '{"token":"VideoSourceToken_1","state":false}' \
  "http://192.168.1.20:7000/api/events/motion"

Successful response

{
  "ok": true,
  "event": "motion",
  "token": "VideoSourceToken_1",
  "state": true,
  "changed": true
}

Sending the same state again is safe. ITVDesk returns changed=false and does not send a duplicate ONVIF event.

Common HTTP responses

Postman setup

1. Select POST and enter the endpoint URL.
2. Under Authorization, select Digest Auth.
3. Enter the ITVDesk IPCam ONVIF username and password.
4. Under Body, select raw and JSON.
5. Send {"token":"VideoSourceToken_1","state":true} to start motion.
6. Send {"token":"VideoSourceToken_1","state":false} when the motion condition ends.

Important notes

• The API opens no new port and uses the existing ITVDesk ONVIF/Web HTTP or HTTPS service.
• MainStream, SubStream, and P2PStream profiles of one channel share the same Video Source Token and produce one ONVIF Motion event.
• A token can target only a channel hosted by the ITVDesk IPCam receiving the request.
• Disabling Motion Event API leaves POS and all other ITVDesk event sources unchanged.
